ATTEN GT-5150 Vacuum Desoldering Station 150W
ATTEN GT-5150 desoldering station: built-in vacuum pump at -600 mmHg, 150 W, 250-480 °C, GT-X150 gun included, automatic tool recognition, T151 nozzles.
The joint melts and
the solder leaves. Once.

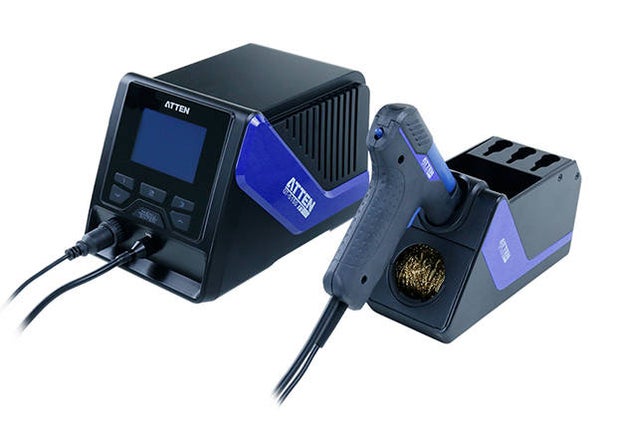

The ATTEN GT-5150 is a dedicated vacuum desoldering station: a 150 W intelligent base with the vacuum pump built in, supplied with the GT-X150 desoldering gun. Heat and suction arrive through the same nozzle, so a through-hole joint is melted and emptied in a single motion instead of being worked at with an iron and braid.
That matters most where damage is easiest to do. Clearing a forty-pin connector or a plated-through hole with braid means repeated dwell on the same pad, and lifted pads are how those repairs go wrong. With −600 mmHg behind a correctly sized nozzle, the solder is gone before the heat has travelled into the laminate.
Like the rest of the GT range it identifies whichever tool you plug in, so fitting a GT-Y iron handle or the GT-N100 tweezers turns the same station into a soldering station.
What it does
Built-in vacuum pump at −600 mmHg
The pump is inside the station — no external compressor, no air line across the bench. Pull the trigger and the molten solder leaves the hole.
250 – 480 °C
The range starts higher than a soldering station's deliberately: desoldering wants the joint molten fast, before the heat spreads into the board.
Automatic tool recognition
The station reads which GT tool is plugged in and loads its parameters. Fit an iron handle and it becomes a soldering station.
GT-X150 gun in the box
The desoldering gun, its nozzle and the station are supplied together — nothing else to buy to start work.
Large graphic display
Temperature, tool and vacuum state shown graphically rather than as a two-digit number.
Three temperature presets
Three stored temperatures on shortcut keys, so a change of board or alloy is one press.
Stand-by and auto-sleep
Both supported. A desoldering nozzle left glowing between joints is how nozzles die.
Large silicone buttons
Usable with gloves on and easy to clean — a small thing that matters on a service bench.
Three things decide the result
A vacuum desoldering station is easy to use badly. None of this is difficult, but all three matter more than the wattage does.
Size the bore to the lead
The nozzle should clear the lead with a little room around it. Too tight and it seals against the pin, so the vacuum has nowhere to pull from.
Let it melt first
Seat the nozzle over the lead, wait until the joint is properly molten, then trigger. Suction applied to half-frozen solder is what leaves a hole still bridged.
Move the lead while it is liquid
A gentle wiggle of the component lead as the solder goes confirms the hole is clear, and stops the lead freezing back into the barrel.
Technical data
Desoldering
| Vacuum pressure | −600 mmHg |
| Vacuum pump | Built into the station |
| Supplied gun | GT-X150 desoldering gun |
| Nozzles | T151 series, 0.8 / 1.0 / 1.3 / 1.6 mm bore |
Heating & control
| Power | 150 W (max) |
| Temperature range | 250 – 480 °C / 482 – 896 °F |
| Display | Large graphic display |
| Shortcut temperatures | 3 groups, adjustable and recalled directly |
| Tool recognition | Automatic — parameters loaded from the tool |
| Stand-by mode | Supported |
| Auto-sleep mode | Supported |
Compatible tools
| Desoldering | GT-X150 gun (supplied) |

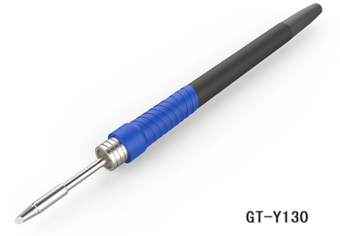

| Soldering | GT-Y050 50 W and GT-Y130 130 W cartridge handles |
| Tweezers | GT-N100 soldering tweezers |
| Note | One tool at a time — the GT-5150 is a single-channel station |
General
| Voltage | AC 230 V ±10%, 50 Hz |
| Earthing | 3.5 mm grounding-type receptacle supplied |
| Packed size | 32.7 × 31.7 × 33.3 cm |

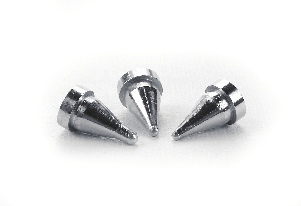

T151 nozzles
The nozzle is the wear part on any desoldering station — molten solder is pulled through its bore, so it erodes and eventually clogs. Four bores cover ordinary through-hole work, and each one is €9.
See all T151 nozzlesWhat you receive
- GT-5150 main unit
- GT-X150 desoldering gun
- 3.5 mm grounding-type receptacle
- AC cord
- User manual
The gun is included, so the station is ready to work out of the box. Add a second bore or two from the T151 range and an iron handle if you want it to solder as well.
The rest of the GT system

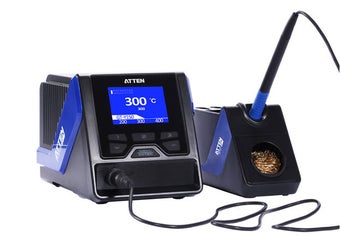

All four stations and the tools that fit them are compared on the GT series page.
Not sure this is the right tool?
Tell us what you take apart most often — through-hole boards, connectors, or surface-mount packages. Vacuum desoldering is the wrong answer for some of those, and we would rather say so before you order.
Frequently asked questions
Why use a vacuum desoldering station instead of braid or a hand pump?
Because it removes the solder while the joint is still molten, in one motion, with the heat applied through the same nozzle that does the sucking. Braid needs a second tool and a lot of dwell time; a hand pump has to be triggered after you move the iron away, by which point the solder is already freezing. On a multi-pin connector or a plated-through hole, the difference is measured in lifted pads.
Which nozzle bore should I use?
Match the nozzle to the lead, not to the pad. The bore should clear the lead with a little room around it, so the vacuum can break the joint rather than sealing itself against the pin. If in doubt go one size up — too tight is worse than slightly loose. The 1.0 mm covers most ordinary component leads.
Can this station also solder?

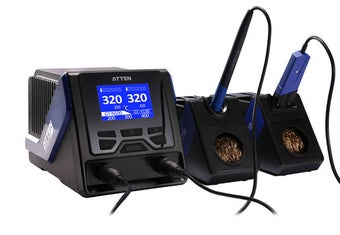

Yes. It recognises any GT tool, so fitting a GT-Y130 or GT-Y050 iron handle, or the GT-N100 tweezers, turns it into a soldering station. It is single-channel, so one tool is live at a time — if you need an iron and something else running together, look at the GT-6200.
Why does the temperature start at 250 °C and not 150 °C?
Because desoldering is a different job from soldering. You want the joint fully molten quickly so the vacuum has something liquid to pull, and so the heat does not have time to travel into the laminate and lift the pad. A 150 °C floor would be of no use here, which is why the soldering stations have one and this does not.
Does it need a compressor or an air line?
No. The vacuum pump is built into the station and runs from the mains — there is nothing to plumb in and nothing else on the bench.
What is the wear part?
The nozzle. Solder is pulled through its bore, so it erodes and eventually clogs; that is normal and it is a €9 part. Keep the bore clear while the nozzle is still hot, and park the gun in its stand so auto-sleep can drop the temperature between joints.
What warranty applies?
Two years on the station and one year on the handle. Nozzles are wear parts and sit outside the warranty — we keep the full T151 range in stock.
Specifications are taken from ATTEN's product documentation and are provided for guidance only. They are subject to change without notice, and errors and omissions may occur. The manufacturer's official datasheet is the definitive reference. If a particular figure is critical to your application, please confirm it with us before ordering.
