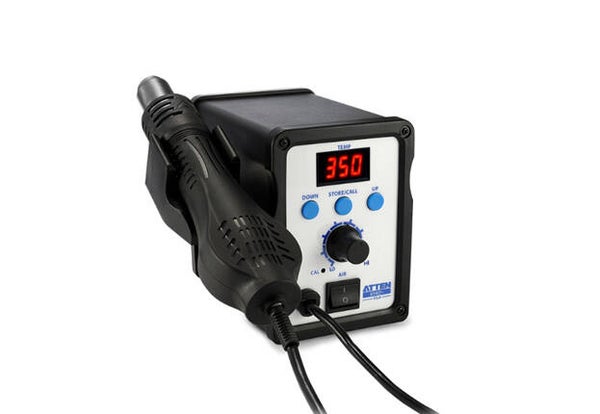

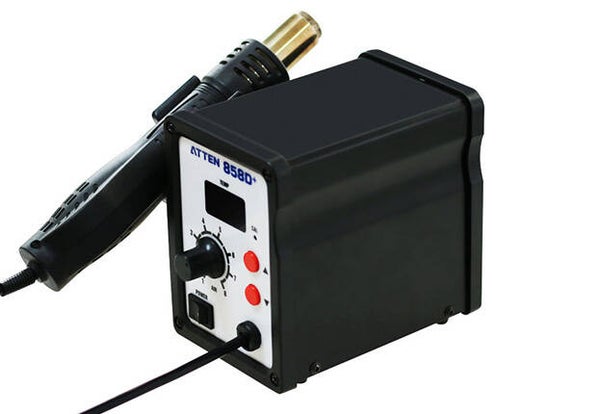

ATTEN AT858D+ Hot Air Rework Station
The ATTEN AT-858D+ V3 hotair soldering station is compact unit. With 700 Watt of power, the station quickly reaches operating temperature. The temperature can be easily set between 100 and 500 degrees C. . The unit has a varible airflow (max. 120 L / min). The station also has a number of built-in functions such as an auto-sleep function, overheating error notification and a good cooling system that makes the station last a long time.
The ATTEN AT-858D+ V3 has a closed-loop and MCU zero crossing design for achieving fast heating-up, accurate and stable control. LED screen used to display working temperatures and working states make operations easy. Embedded sensor inside iron hand piece to obtain auto-sleep to save energy. Intelligence cooling system and deferred power-off function to extend hot air gun lifespan. Compact unit to save workbench space and eye-pleasing appearance. Intelligent malfunction detection and indications. Conserve a series frequently-used temperature &air flux. Digital control for air flow grades (A25-A99 ). Make normal temperature wind to cool the components.
| Specifications： | Standard Packing: |
|---|---|
| Voltage：AC (100V/110V/120V||220V/230V/240V) 50/60Hz(Optional) | Inner box : 26x18.5x15.5(cm) |
| Power：700W | N.W.: 1.56kg |
| Temperature range：100~500°C | G.W.: 1.75kg |
| Maximum Air Flow：120L /min | Carton: 12PCS/Carton |
| Air flow grades：A25-A99 | Size: 55x39.5x49(cm) |
| Pump: fan type pump | N.W.: 21.0kg |
| Noise：＜52dB(A) | G.W.: 22.1kg |
| Working Temperature：0℃～40℃ |
Package includes :
Main Unit: 1 Unit

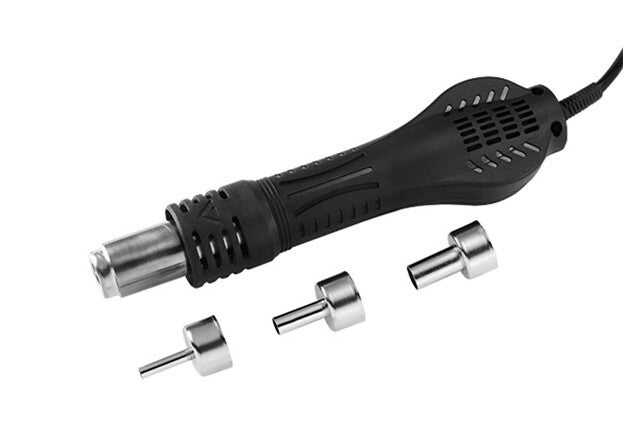

Nozzles: 3 PCS,
Gun Holder: 1 PCS,
AC Cord: 1 PCS,
Manual: 1 PCS
