ATTEN AT8502D 2 in 1 Rework Station
Sold out
€199.00

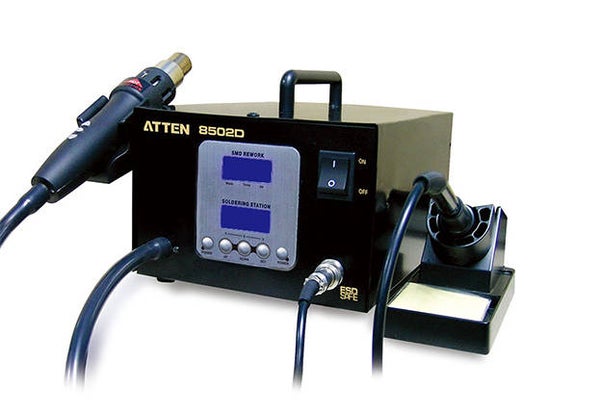

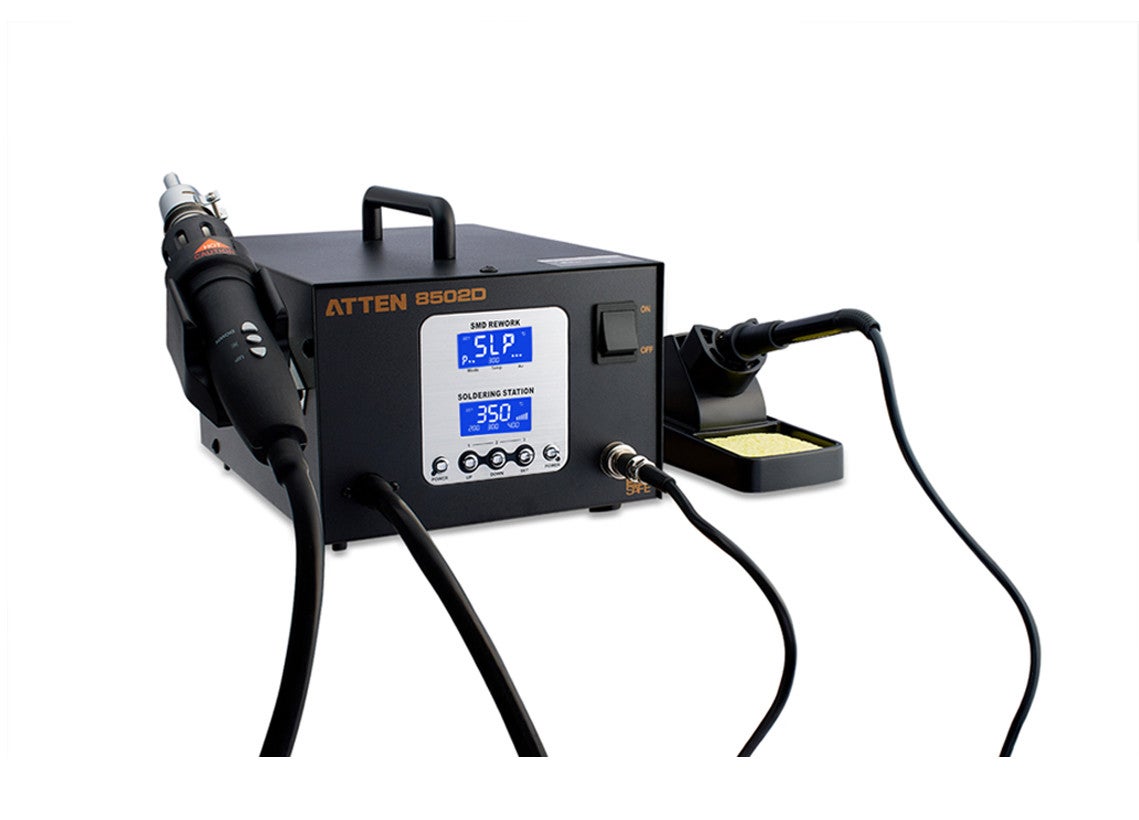

ATTEN AT8502D 2 in 1 Rework Station
AT8502D is an intelligent 2 in 1 Rework soldering station and hot-air de-/solder rework station with a 800 W hot-air heating element for a temperature range from 100 - 500 °C and adjustable air flow. The soldering iron has a 50 W element for temperatures from 200 - 480 °C
- MCU and PID algorithm controlled temperature be more accurate.
- Soldering iron and hot air station integrated to save space.
- Dual High definition LCD display to show various parameters make operation convenient.
- Digital temperature calibration and switchable temperature units make it versatile.
- Diaphragm pump with high pressure make it suitable for various nozzles.
- Intelligence cooling system and deferred power-off function to extend hand piece lifespan.
- Patented heater for obtaining fast heating-up and extending lifespan.
- Three preset buttons to switch between different temperature and air grades combinations.
- Automatic standby function to save more energy.
- Intelligent malfunction prompt to let user locate causes fast and accurately.
| Specifications: | Packing list: | Standard Packing: |
|---|---|---|
| oltage: AC (100V/110V/120V||220V/230V/240V) 50/60Hz(Optional) | Main Unit: 1 Unit | Inner box: 32x6x5(cm) |
| Power： 700W | Hot Air Gun Holder : 1 PCS | N.W: 0.27kg |
| Display manner：Dual LCD display | Soldering iron: 1 PCS | G.W.: 0.35kg |
| AC Cord: 1 PCS | Carton: 30PCS/Carton | |
| Soldering iron | Iron Stand（with cleaning sponge）: 1 PCS | Size:32.7x31.7x33.3(cm) |
| Power：50W | Nozzles: 4 PCS | |
| Temperature range：200℃~480℃ | Manual: 1 PCS | N.W.: 8.1kg |
| Temperature offset range：±50℃ | G.W.: 9kg | |
| Tip to ground impedance：< 2Ω | ||
| Tip to ground voltage：< 2mV | ||
| Hot air rework station | ||
| Power：550W | ||
| Temperature range：100℃~500℃ | ||
| Maximum Air Flow：23L/min | ||
| Air flow grades：020～100 grades | ||
| Pump：Diaphragm type pump |
